1RE 1103230AC

Relais industriel UNDECAL, 230V a.c.

Alimentation 230V a.c. 3 contacts inverseurs 10A / 250V

SPÉCIFICATIONS TECHNIQUES

• Type: OCTAL / UNDECAL

• Alimentation: 12-24-48-60V d.c. (mod DC) 12-24-48-110-230V a.c. (mod AC)

• Charge nominale: 10A / 250Va.c. - 30V d.c.

• Charge AC1: 12A / 250Va.c. - 30V d.c.

• Puissance maxi commutable: 2500VA / 300W

• Tension maxi commutable: 250V a.c. / 30V d.c.

• Puissance moteur: 1/3 HP at 240V a.c.

• Matériel contacts: AG - CdO

• Type d’emploi tertiaire / industriel

• Type de sortie: en échange libre de potentiel

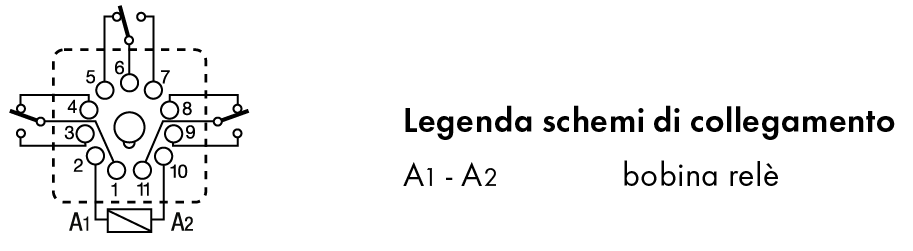

• Contacts disponibles: 2 en déviation (2x ) OCTAL 3 en déviation (3x ) UNDECAL

• Dimensions (L x W x H) 21,5 x 28 x 36 mm

• Poids 37 g.

• Type d’installation: sur socle

• Dégrée de protection IP20

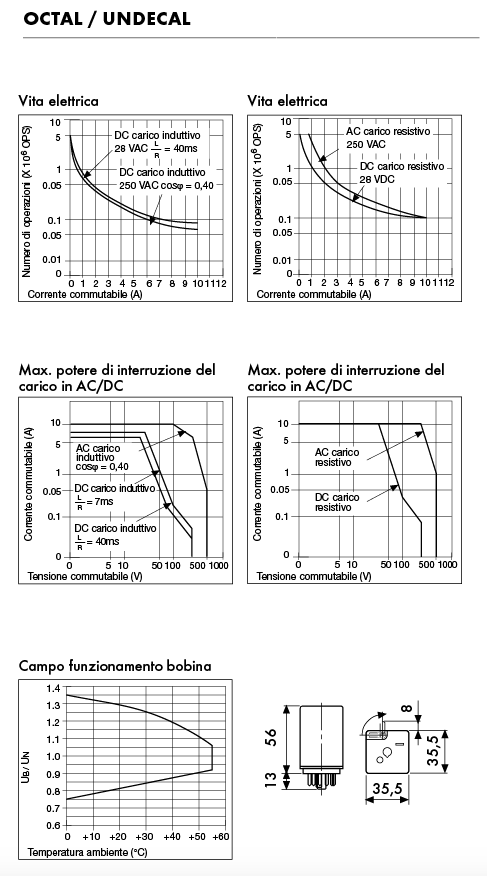

• Durée de vie électrique (opérations): 100.000

• Durée de vie mécanique (opérations): 10.000.000

• Résistance d’isolement (500 V d.c.): 1.000 MO

• Rigidité diélectrique entre contacts ouverts: 750 V a.c.

• Rigidité diélectrique entre contacts et bobine: 3.750 V a.c.

• Charge mini commutable: 100 mA / 5 V d.c.

• Puissance dissipée: 1.5 W (mod DC) - 2.5 VA (mod AC)

• Limites de température de fonctionnement -55 to + 70 °C

• Temps de réponse excitation (à tension nominale): 25 msec max

• Temps de réponse désexcitation (à tension nominale): 25 msec max

• Température ambiance -55 ÷ 70 °C

• Résistance aux vibrations: 10 ÷ 55 Hz 1.5 mm

• Résistance aux chocs (fonctionnel): 100m/sec2/10g

• Résistance aux chocs (destructif): 1.000m/sec2/100 g

• Humidité: 35 % ÷ 95 %

• Construction: anti poussière

• Tension nominale d’isolation: 250 V

• Tension de tenue à impulsion nominale: 2,2 KV

• Degré de pollution: 2

• Catégorie de surtension III
