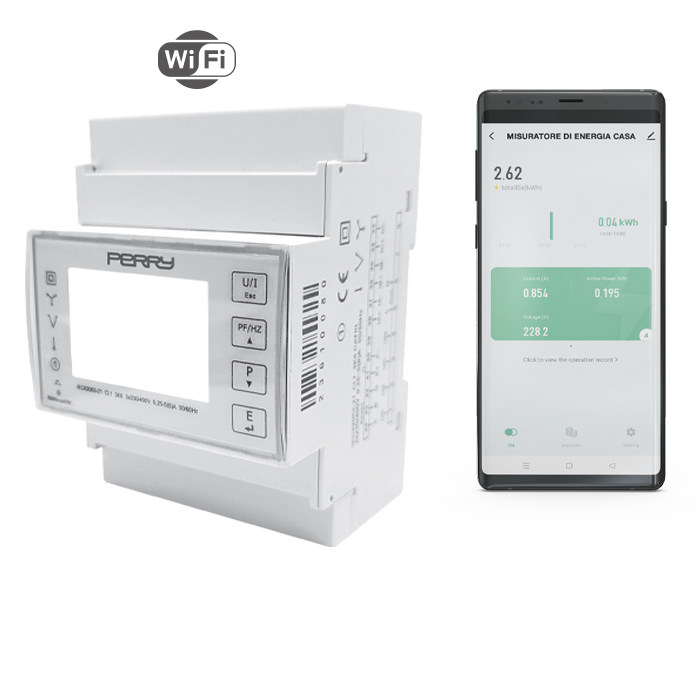

Three-phase digital energy meter with wi-fi connection, 4 DIN
Accounts for energy consumption in three-phase systems. If there is a Wi-Fi network it can be connected to the Internet and consulted via the Perry Smart App installed on a smartphone or tablet.
This useful feature allows you to view user consumption even remotely with an easy-to-interpret interface.
The relay on board the device allows the connected load to be disconnected when a freely settable consumption threshold is reached.
Multifunctional parameter measurement: voltage, current, active power, reactive power, apparent power, power factor, phase angle, etc.
Technical features
Power supply 230V (L-N) / 400 (L-L) frequency from 45 Hz to 65 Hz
Maximum current 5A
Settable pulse output (60/100/200 milliseconds) for each Wh consumed: Open collector transistor 5-27 V d.c max 30 mA d.c
Number of digits 6 numbers + 2 decimals
1 MΩ impedance
Settable reading resolution (0.001/0.01/0.1/1/10/100 kWh/kvarh)
Measurement range: 30–300 Vac (L-N), 30–500 Vac (L-L)
Accuracy Class 1 IEC62053-21
Power consumption: <4 VA / 0.5 W
Operating temperature -25 ÷ +55°C
Dimensions (WxDxH) 72 x 66 x 100 mm
ATTENTION: 1SDSD10CET4WIFI must to be combined with external TA current transformers NOT INCLUDED
